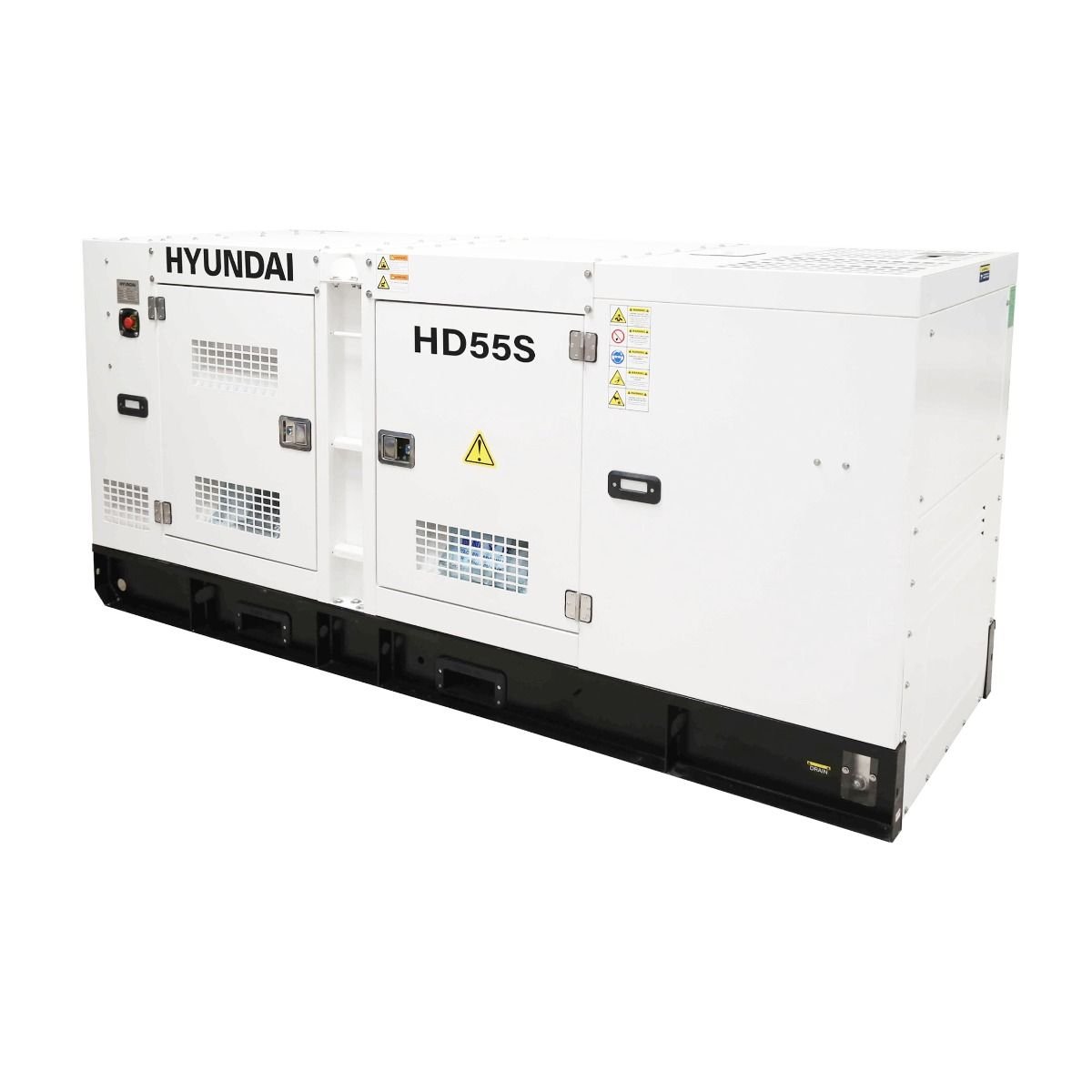

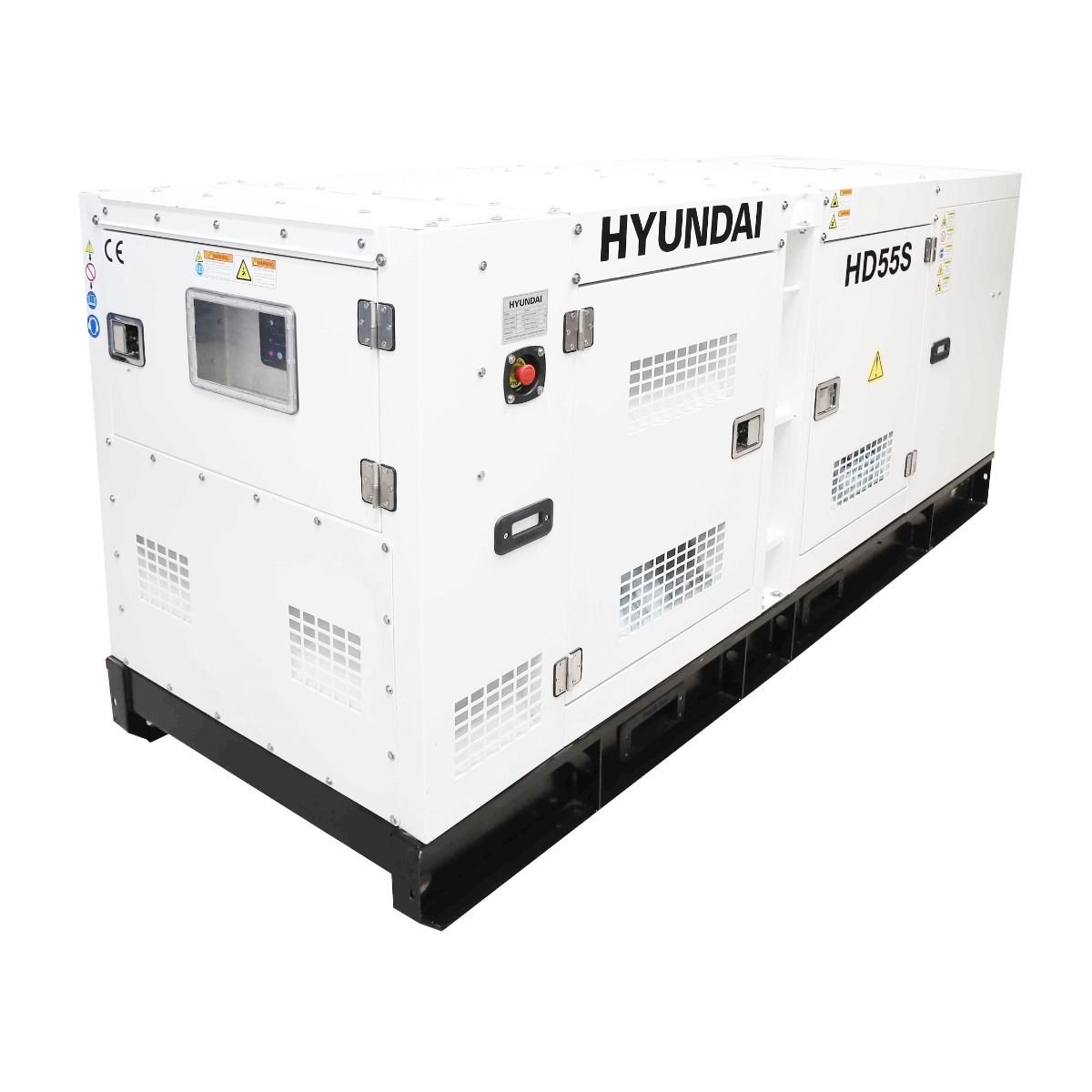

HYUNDAI 55 KVA Silent Diesel Generator (Model: HD55S)

Reliable, fuel-efficient, and built for continuous performance, the HYUNDAI 50 KVA silent diesel generator is an ideal power solution for commercial buildings, offices, factories, and backup power applications. Designed with advanced technology and high-quality components, it ensures stable power output and long operational life.

Power & Performance

• Model: HD55S

• Brand: HYUNDAI

• Continuous Power: 50 KVA / 40 KW

• Standby Power: 55 KVA / 44 KW

• Current: 72 A

• Voltage: 220V / 380V

• Frequency: 50 Hz

• Phase: 3 Phase

• Engine Speed: 1500 RPM

• Power Factor: 0.8

• Origin: Korea

• Country of Manufacture: China

This generator delivers consistent and efficient power output, making it suitable for both prime and standby applications.

Engine Specifications

Powered by a durable FAWDE diesel engine, this generator ensures dependable performance and fuel efficiency.

• Engine Brand: FAWDE

• Model: 4DX22-65D-HMS20W

• Fuel Type: Diesel

• Cylinders: 4

• Fuel Tank Capacity: 90 Liters

• Cooling System: Water cooled

The water-cooled engine system maintains optimal temperature and extends engine life during long operations.

Alternator Details

Equipped with a high-quality HYUNDAI brushless alternator for stable voltage and reliable output.

• Brand: HYUNDAI

• Type: Brushless

• Model: HK224D

• Insulation Class: H

• Protection: IP23

Controller & Electrical Components

Advanced monitoring and control through DeepSea controller for safe and automated operation.

• Controller Brand: DeepSea

• Model: DSE 6120

• Circuit Breaker: Delixi

Control Panel Features:

• Low oil pressure protection

• Auto mains failure (AMF) capability

• Automatic SMS alert on alarms

• Running hours and performance log

• 3-phase power measurement

• Engine RPM, voltage, frequency monitoring

• Plug-in extension module support

Fuel Consumption

• 50% Load: 6 L/H

• 75% Load: 9 L/H

• 100% Load: 12 L/H

Designed for efficient fuel usage, reducing operating costs while maintaining performance.

Dimensions & Noise Level

• Length: 2270 mm

• Width: 960 mm

• Height: 1200 mm

• Weight: 1049 KG

• Noise Level: 68 dBA at 7 meters

Silent canopy design ensures low noise operation, ideal for commercial and residential areas.

General Features

• Foreign high-quality silent canopy

• Large access doors for easy maintenance

• Precision laser-cut metal sheet body

• Weatherproof sealed joints

• Durable powder-coated paint finish

• Heavy-duty fabricated base frame

• Anti-vibration rubber mountings

Battery

Equipped with VARTA maintenance-free battery, known for long life, strong starting power, and reliable performance in all conditions.

Warranty & Installation

• Warranty: 1 Year

• Installation: Free

• Note: Cable and additional accessories cost to be borne by buyer

The HYUNDAI HD55S 50 KVA silent diesel generator offers a complete and dependable power solution, combining performance, durability, and advanced control features for uninterrupted electricity supply.
