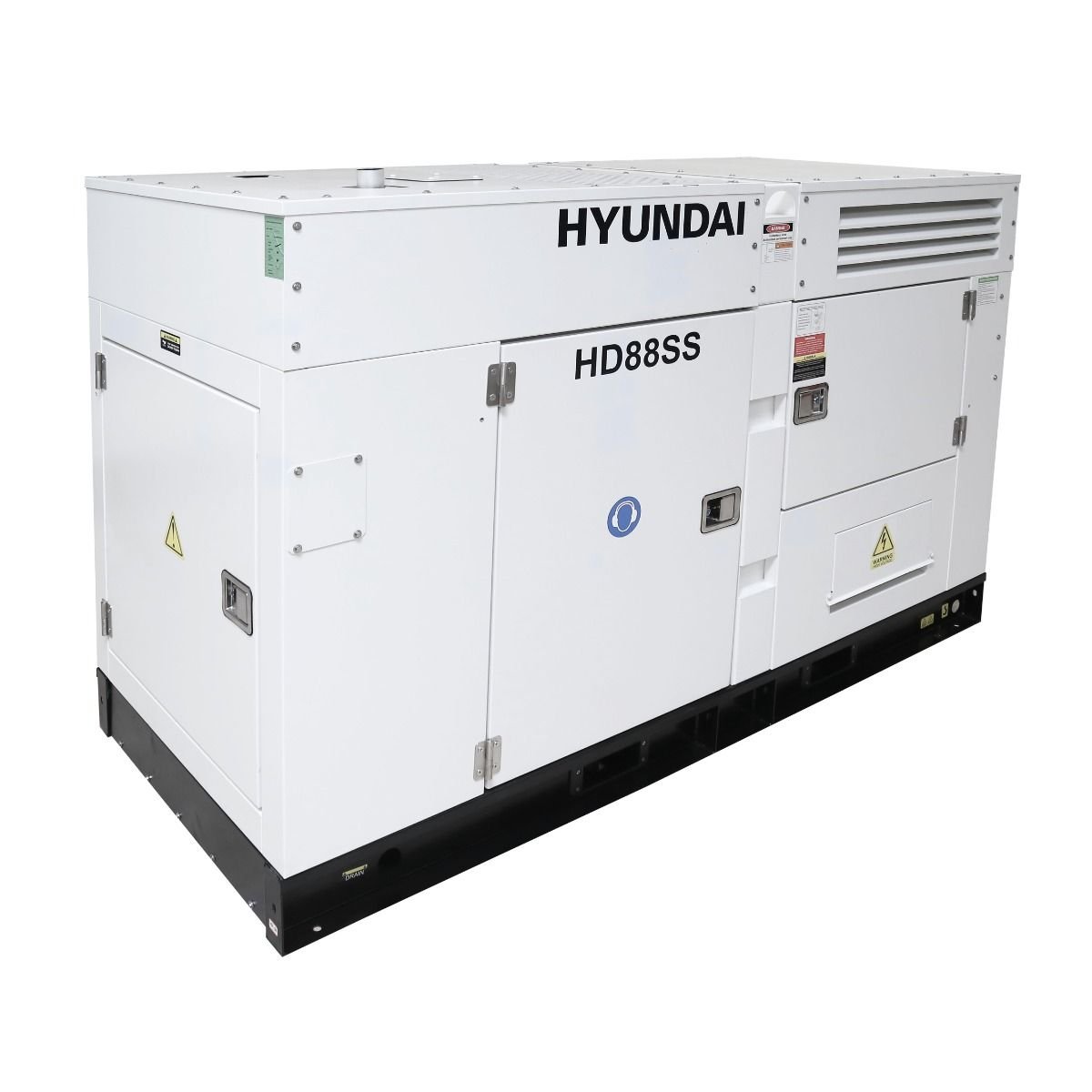

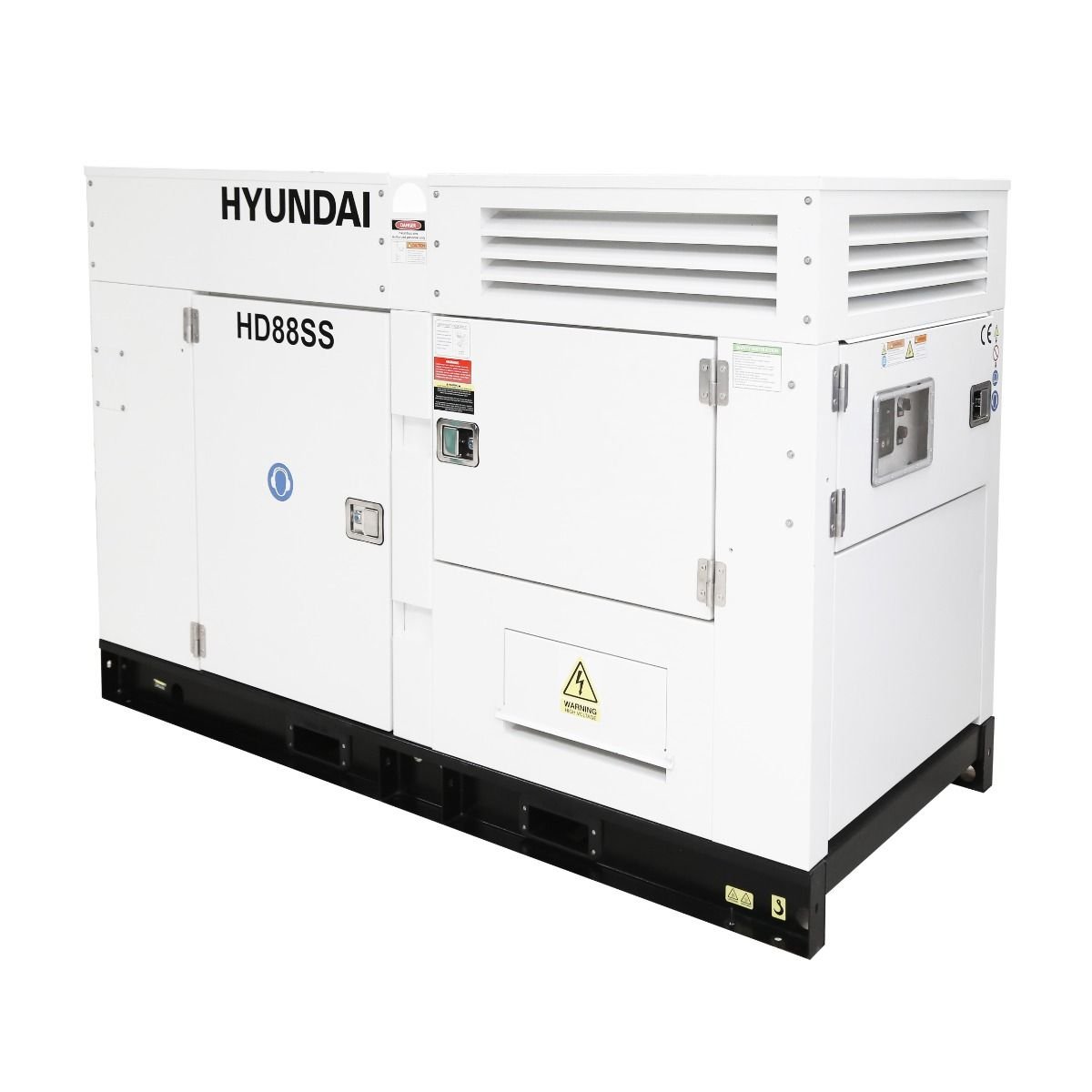

The HYUNDAI HD88SS 88 KVA super silent diesel generator is a powerful and dependable solution for commercial, industrial, and residential backup power. Built with premium components and advanced control technology, it delivers stable performance with low noise, making it suitable for noise-sensitive environments.

Power & Electrical Specifications

• Model: HD88SS

• Brand: HYUNDAI

• Continuous Power: 80 KVA / 64 KW

• Standby Power: 88 KVA / 70 KW

• Current: 115 A

• Voltage: 220V / 380V

• Frequency: 50 Hz

• Phase: 3 Phase

• Engine Speed: 1500 RPM

• Power Factor: 0.8

• Origin: Korea

• Country of Manufacture: China

This generator ensures consistent power delivery for continuous and standby operations across various industries.

Engine Specifications

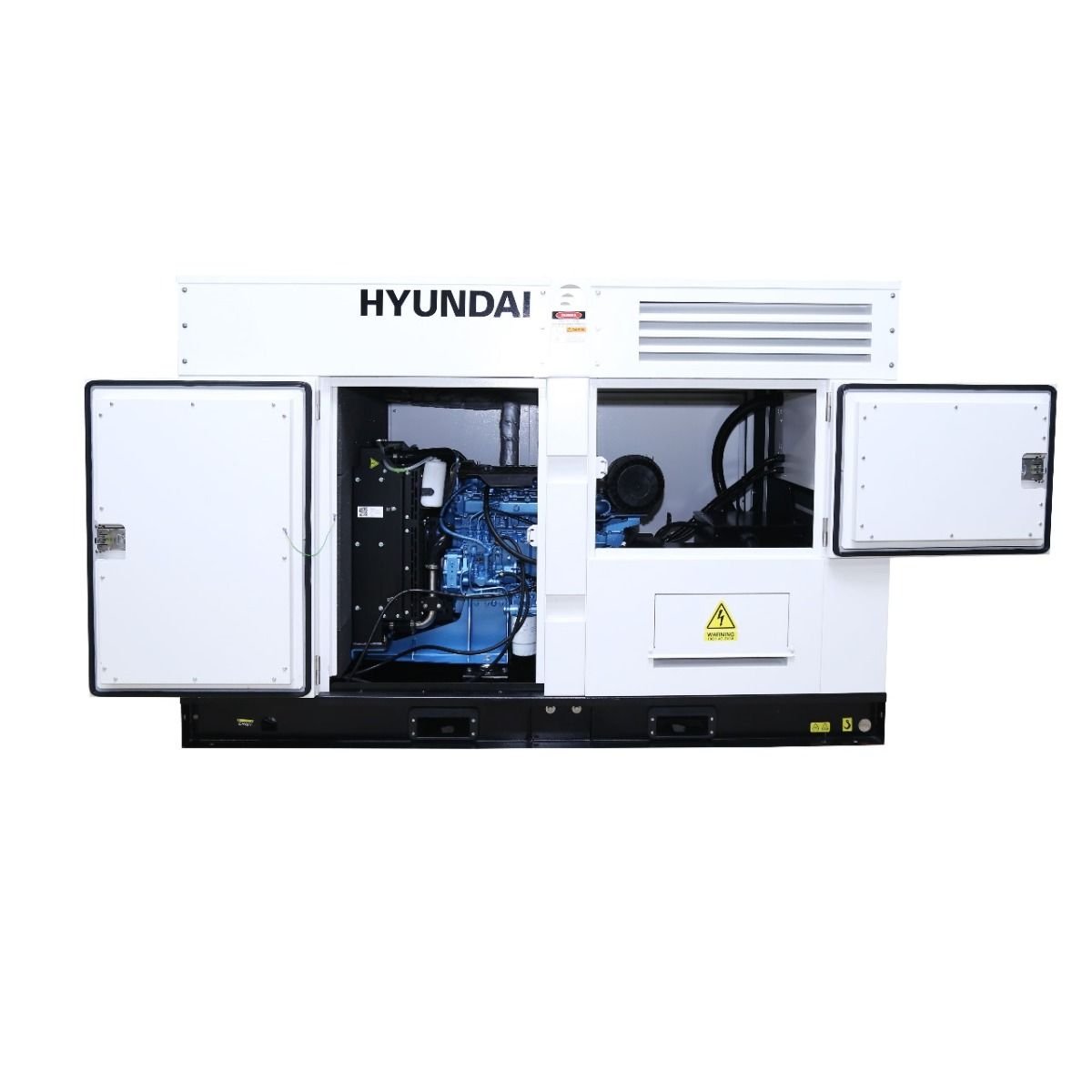

Powered by a high-performance BAUDOUIN turbocharged diesel engine for durability and fuel efficiency.

• Engine Brand: BAUDOUIN

• Model: 4M10G88/5 (Turbocharged)

• Fuel Type: Diesel

• Cylinders: 4

• Fuel Tank Capacity: 120 Liters

• Cooling System: Water cooled

• Engine Type: FAWDE-based 4-cylinder water-cooled engine (1500 RPM)

The engine provides strong performance with reliable operation for long hours.

Alternator Details

• Brand: HYUNDAI

• Type: Brushless

• Model: HK224G

• Insulation Class: H

• Protection: IP23

The brushless alternator ensures smooth and stable voltage output for sensitive equipment and heavy loads.

Controller & Electrical System

• Controller Brand: DeepSea

• Model: DSE 6120 (Made in UK)

• Circuit Breaker: ABB

Control Panel Features:

• Auto mains failure (AMF) capability

• Low oil pressure protection

• Automatic SMS alert system

• Voltage, frequency, RPM monitoring

• Running hours and event log

• 3-phase power measurement

• Plug-in extension module support

Advanced control and monitoring ensure safe, automatic, and efficient generator operation.

Fuel Consumption

• 50% Load: 9.1 L/H

• 75% Load: 13.5 L/H

• 100% Load: 18.8 L/H

Optimized fuel consumption helps reduce operational costs while maintaining performance.

Dimensions & Noise Level

• Length: 2620 mm

• Width: 1130 mm

• Height: 1700 mm

• Weight: 1158 KG

• Noise Level: 62 dBA at 7 meters

Super silent canopy ensures very low noise output, suitable for offices, hospitals, and residential areas.

General Features

• Imported high-quality silent canopy

• Large access doors for easy servicing

• Precision laser-cut metal body

• Weatherproof sealed joints

• Durable powder-coated paint finish

• Heavy-duty fabricated base frame

• Anti-vibration rubber mountings

Battery

Equipped with VARTA maintenance-free battery, known for strong starting performance, long life, and reliable operation in demanding conditions.

Applications

Ideal for:

• Offices and commercial buildings

• Hospitals and clinics

• Apartments and residences

• Restaurants and shopping centers

• Factories and industrial use

• Corporate backup power

Warranty & Installation

• Warranty: 1 Year

• Installation: Free

• Note: Cable and additional accessories cost will be borne by the buyer

The HYUNDAI HD88SS 88 KVA super silent diesel generator delivers powerful performance, advanced control, and reliable backup power, making it an excellent choice for businesses and facilities that require uninterrupted electricity.
