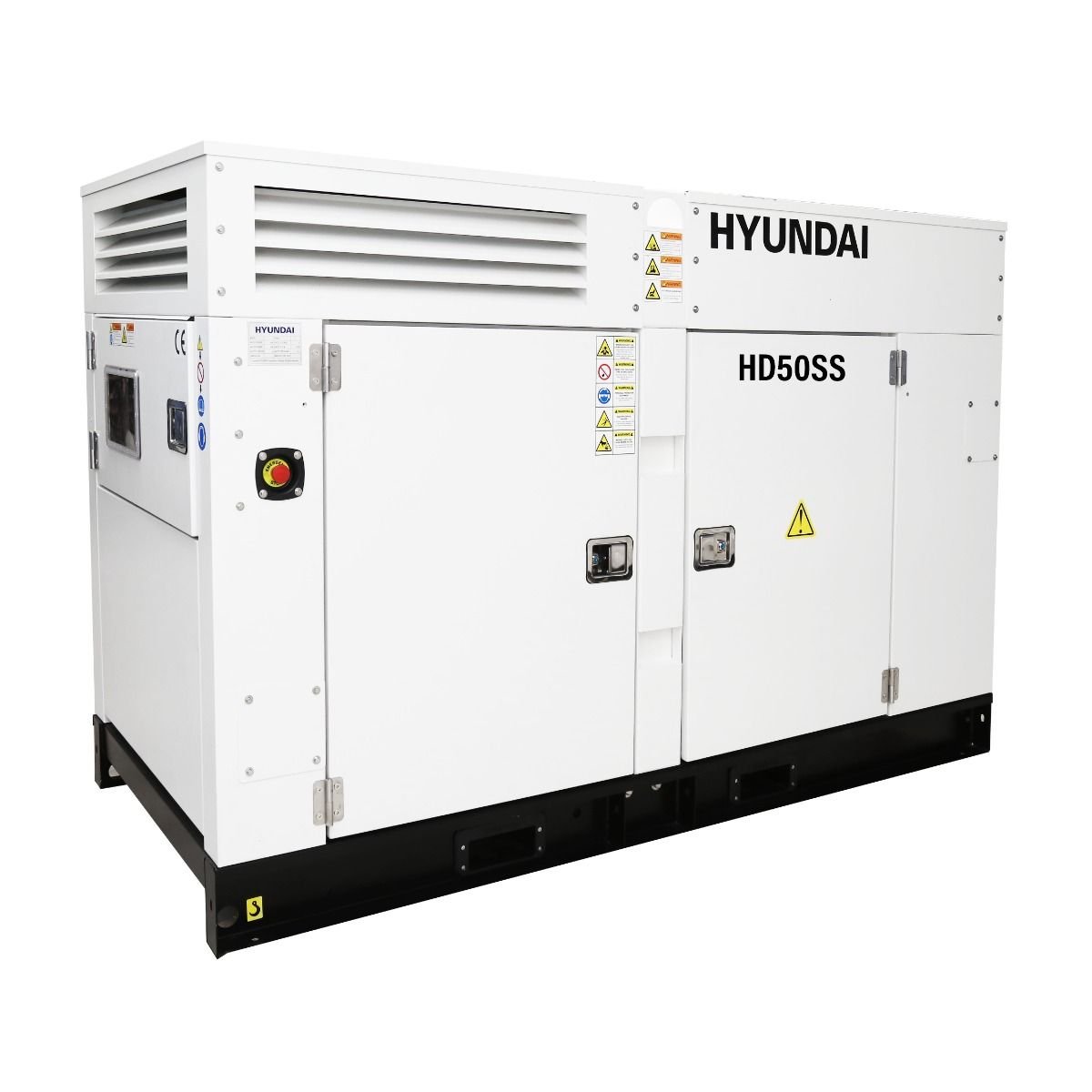

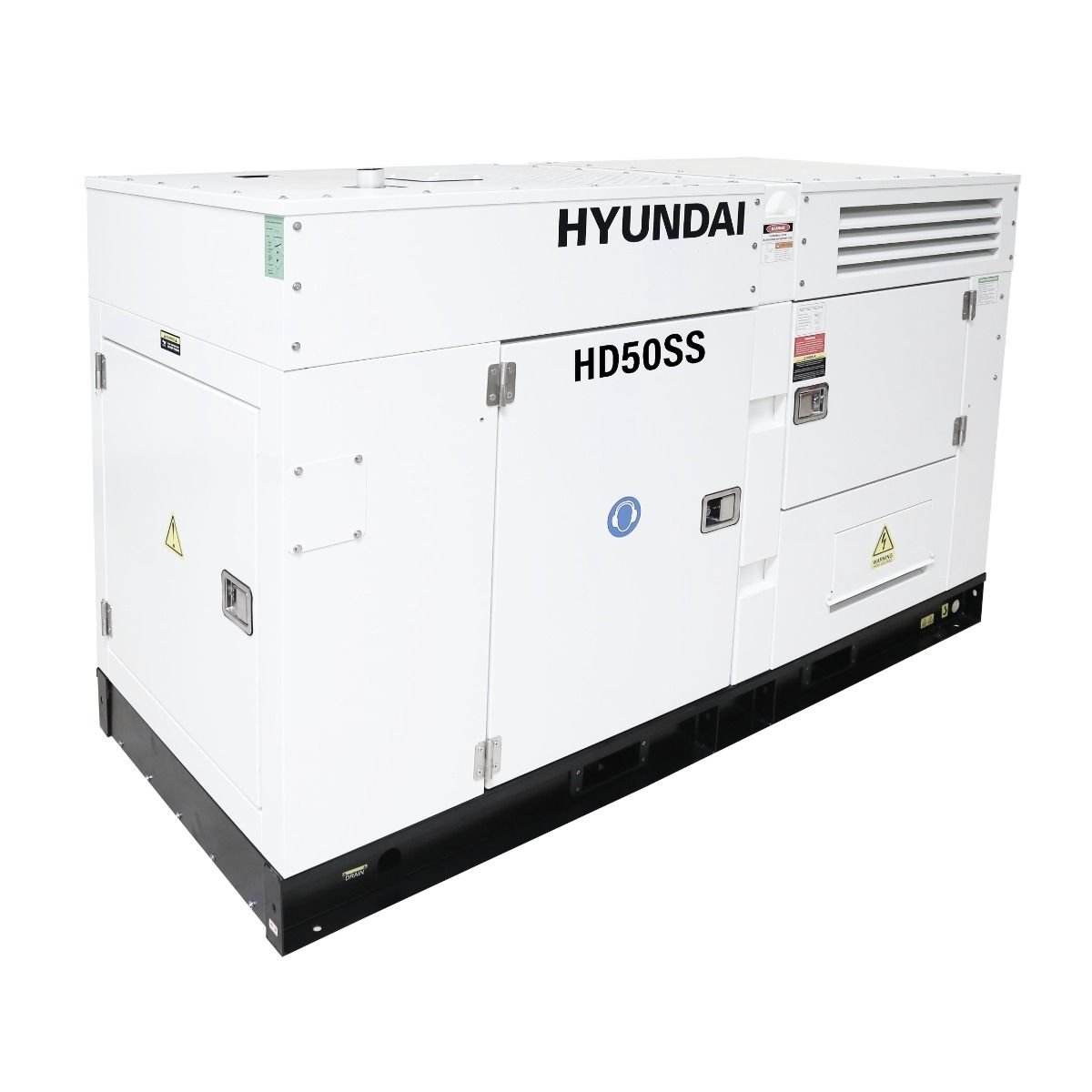

The HYUNDAI HD50SS super silent diesel generator is designed to deliver reliable power with low noise and high efficiency. Built with a powerful BAUDOUIN engine and premium HYUNDAI alternator, this generator is ideal for commercial buildings, offices, hospitals, and residential backup where quiet operation is essential.

Power & Electrical Specifications

• Model: HD50SS

• Brand: HYUNDAI

• Continuous Power: 45 KVA / 36 KW

• Standby Power: 50 KVA / 40 KW

• Current: 65 A

• Voltage: 220V / 380V

• Frequency: 50 Hz

• Phase: 3 Phase

• Engine Speed: 1500 RPM

• Power Factor: 0.8

• Origin: Korea

• Country of Manufacture: China

Provides stable three-phase power for both continuous and standby applications.

Engine Specifications

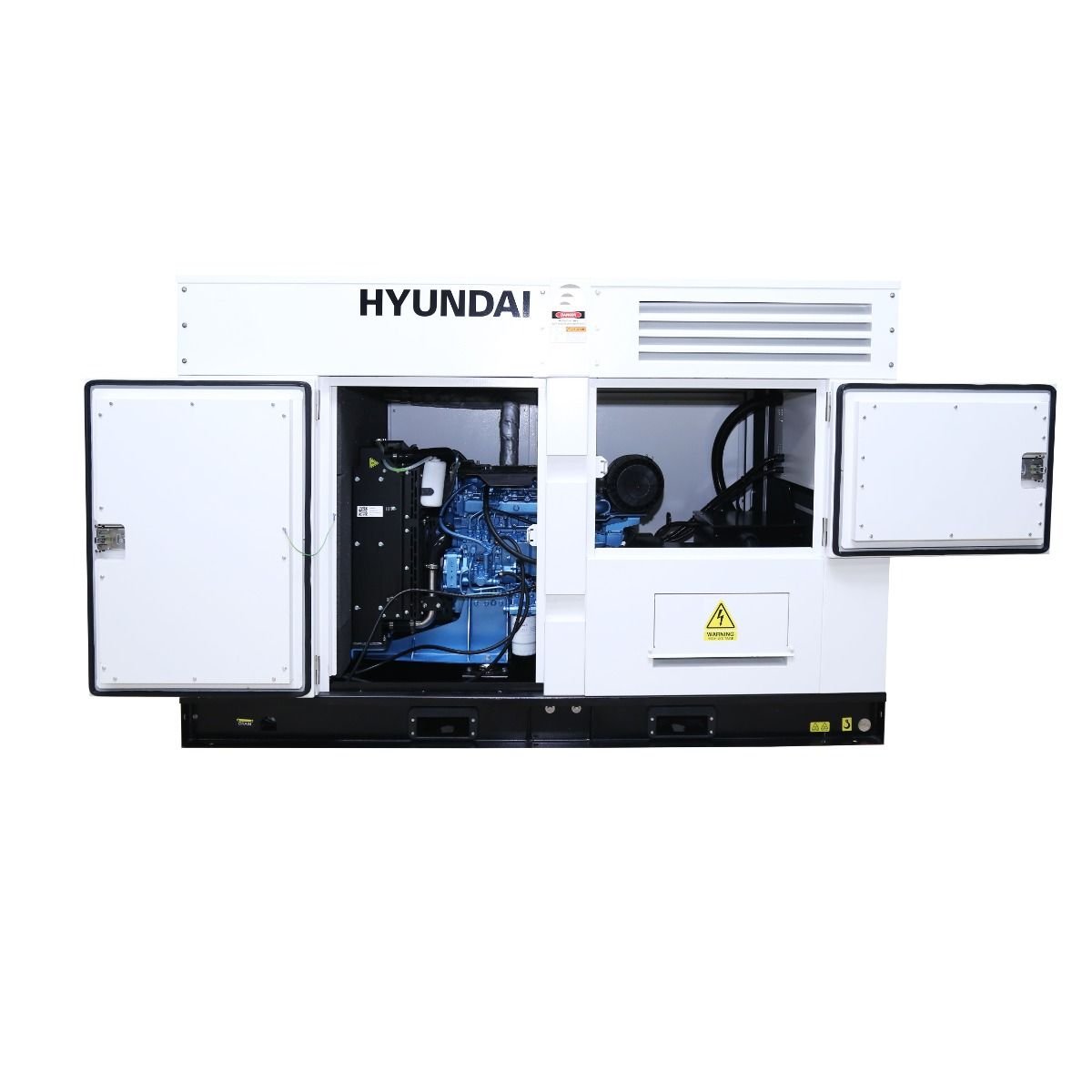

Powered by a durable BAUDOUIN diesel engine known for performance and longevity.

• Engine Brand: BAUDOUIN

• Model: 4M06G50/5

• Fuel Type: Diesel

• Cylinders: 4

• Fuel Tank Capacity: 100 Liters

• Cooling System: Water cooled

• Engine Speed: 1500 RPM

Water-cooled technology ensures efficient temperature control and long operational life.

Alternator Details

• Brand: HYUNDAI

• Type: Brushless

• Model: HK224D

• Insulation Class: H

• Protection: IP23

Ensures smooth voltage delivery and protects connected equipment from fluctuations.

Controller & Electrical System

• Controller Brand: DeepSea

• Model: DSE 6120 (UK Made)

• Circuit Breaker: ABB

Control Panel Features:

• Auto mains failure (AMF) capability

• Low oil pressure protection

• Automatic SMS alerts on alarms

• Voltage, frequency, and RPM monitoring

• Running hours and performance logs

• 3-phase power measurement

• Extension module support

Advanced control ensures safe and automatic generator operation.

Fuel Consumption

• 50% Load: 5.4 L/H

• 75% Load: 8 L/H

• 100% Load: 10.7 L/H

Efficient fuel consumption helps reduce operating costs.

Dimensions & Noise Level

• Length: 2270 mm

• Width: 1030 mm

• Height: 1500 mm

• Weight: 1158 KG

• Noise Level: 62 dBA at 7 meters

Super silent canopy design ensures minimal noise, ideal for residential and commercial use.

General Features

• Super silent foreign canopy

• Heavy-duty fabricated base frame

• Weatherproof sealed body

• Powder-coated durable paint

• Anti-vibration rubber mountings

• Large service access doors

• Laser-cut precision metal body

Battery

Equipped with VARTA maintenance-free battery, offering reliable starting performance, long lifespan, and minimal maintenance.

Applications

Suitable for:

• Offices and commercial buildings

• Hospitals and clinics

• Apartments and residences

• Restaurants and retail shops

• Industrial backup power

• Corporate and institutional use

Warranty & Installation

• Warranty: 1 Year

• Installation: Free

• Note: Cable and additional accessories cost will be borne by the buyer

The HYUNDAI HD50SS 50 KVA super silent diesel generator offers powerful performance, low noise operation, and dependable backup power, making it a practical choice for businesses and facilities requiring uninterrupted electricity.
